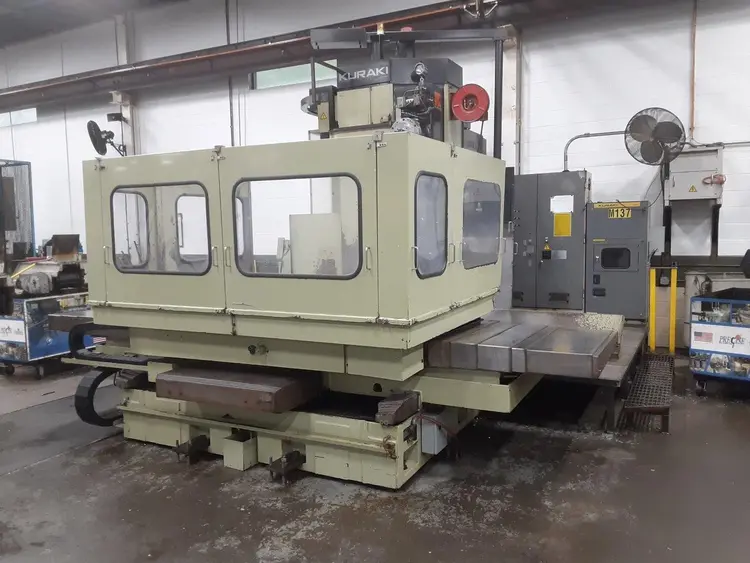

1990 KURAKI KBT-11WDX

Have one to sell?
262-854-5054
sales@meridianmachinery.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Table Type Boring Mills
Manufacturer:
KURAKI
Model:
KBT-11WDX
Year:
1990
Stock #:
3624
Status:
For Sale
Spindle Size4.33"109.98 mm
X-Horiz Tvl of Table78.74"2,000 mm
Y-Vert Tvl of Head59.06"1,500.1 mm
RPM2,500 RPM2,500 RPM
Table-W63"1,600.2 mm
Table-L55"1,397 mm
Spindle Tvl.25.5"647.7 mm
ControlCNC (FANUC 15M)CNC (FANUC 15M)
Weight4500045000

FANUC 15M CNC CONTROL W/ RSR-232 PORT
4th axis .001 DEGREE
14,000 LB. TABLE CAPACITY, TABLE SPLASH GUARD ON 3 SIDES
55” X 63” ROTARY TABLE T-SLOTTED .001 DEGREE
SHOT PIN EACH 90 DEGREES WITH DIGITAL DISPLAY
2500 RPM SPINDLE VARIABLE, SPINDLE CHILLER UNIT
4.33” SPINDLE DIAMETER
SPINDLE: CAT 50 (NO TOOLS) NO TOOLING PLATES
ATC: 40 TOOL POCKETS, MAX TOOL DIAMETER 4.92” / 9.05”
COOLANT TANK WITH CHIP CONVEYOR
BUYER IS RESPONSIBLE FOR DISASSEMBLY OF MACHINE
AND LOADING ON TO TRUCK
BUYER PAYS FOR SHIPPING TO END DESTINATION
