2010 HAAS VF-3YT, HAAS CNC, 10000 RPM SPINDLE WITH GEARBOX, CHIP AUGER, 4TH AXIS READY, LOW HOURS

Address: 10424 38th Street,, Kenosha, WI, 53144, US
Telephone: 262-854-5054

Have one to sell?

262-854-5054

sales@meridianmachinery.com

ConditionUsed

Quantity

1 available

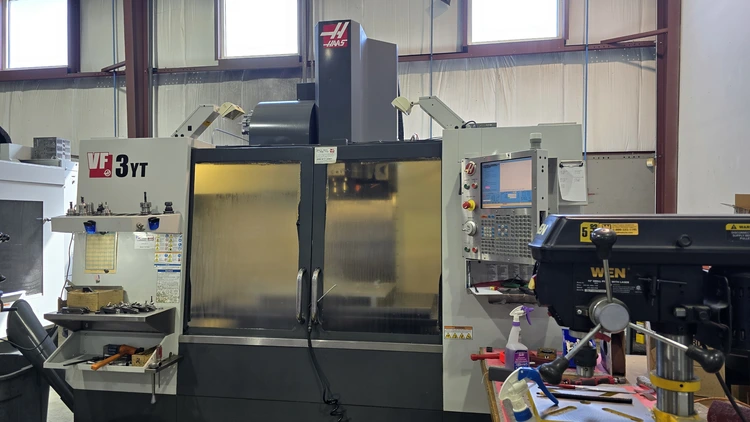

2010 HAAS VF-3YT Vertical Machining Centers | Meridian Machinery, Inc. (1)

2010 HAAS VF-3YT Vertical Machining Centers | Meridian Machinery, Inc. (2)

2010 HAAS VF-3YT Vertical Machining Centers | Meridian Machinery, Inc. (3)

2010 HAAS VF-3YT Vertical Machining Centers | Meridian Machinery, Inc. (4)

2010 HAAS VF-3YT Vertical Machining Centers | Meridian Machinery, Inc. (5)

2010 HAAS VF-3YT Vertical Machining Centers | Meridian Machinery, Inc. (6)

2010 HAAS VF-3YT Vertical Machining Centers | Meridian Machinery, Inc. (7)

2010 HAAS VF-3YT Vertical Machining Centers | Meridian Machinery, Inc. (8)

2010 HAAS VF-3YT Vertical Machining Centers | Meridian Machinery, Inc.

Have one to sell?

Overview

Type:

Vertical Machining Centers

Manufacturer:

HAAS

Model:

VF-3YT

Condition:

Excellent

Year:

2010

Stock #:

3623

Status:

For Sale

Specifications

ImperialMetric

X	40"	1,016 mm
Y	26"	660.4 mm
Z	25"	635 mm
Power	30 hp	22.4 kW
RPM	10,000 RPM	10,000 RPM
# ATC	241	241
Taper	CT or BT 40	CT or BT 40
Table-W	25"	635 mm
Table-L	54"	1,371.6 mm
# Axis	3	3
Control	CNC	CNC

Equipped With

HAAS 64 BIT CNC CONTROL WITH 15" COLOR LCD SCREEN
RS-232C PORT, ETHERNET PORT & USB PORT FOR DNC USE
RIGID/SYNCHRONOUS TAPPING, HIGH INTENSITY LIGHTING
PRE-WIRED FOR HAAS 4TH AXIS (NO ROTARY TABLE INCLUDED)
CHIP REMOVAL AUGER, PROGRAMMABLE COOLANT NOZZLE
STANDARD COOLANT SYSTEM WITH TANK AND PUMP
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS

2010 HAAS VF-3YT, HAAS CNC, 10000 RPM SPINDLE WITH GEARBOX, CHIP AUGER, 4TH AXIS READY, LOW HOURS
