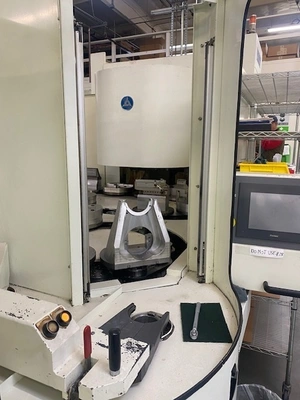

2011 KITAMURA SUPERCELL 400, 5 AXIS, 190 ATC, 40 PALLETS, 1969 IPM, CTS, PROBING, CUTTING PARTS NOW
Horizontal Machining Centers
.jpg)
| X | 20.1" |
| Y | 20.1" |
| Z | 20.1" |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 190 |
| Taper | CAT 40 |
| Pallet-W | 13.78" |
| Pallet-L | 13.78" |
| # Axis | 5 |
| Control | CNC (FANUC 300IS) |
FANUC 300iS 64 BIT CNC CONTROL WITH 10.4" LCD MONITOR
AI NANO CONTROL, IAC SYSTEM 1, SPINDLE CHILLER/COOLER
HPCC BY RISC CONTROL, INCLUDES NURBS INTERPOLATION
RS-232C PORT, USB PORT & ETHERNET PORT FOR DNC USAGE
RIGID TAPPING, 4 STEP GEARED 15000 RPM CAT 40 SPINDLE
40 STATION AUTO PALLET CHANGER (13.8" ROUND PALLETS)
WORK STATION, 190 STATION AUTOMATIC TOOL CHANGER
TOOL PRESETTER PACKAGE B, TOOL LIFE MANAGEMENT
FULL 4TH & 5TH AXIS ROTARY TABLE WITH SCALE FEEDBACK
LINEAR SCALE FEEDBACK ON X, Y & Z AXES (SCALES ALL AXES)
4 SETS ADDITIONAL M FUNCTIONS, 400 TOOL OFFSETS TOTAL
200 REGISTERABLE PROGRAMS, MACRO B 82 VARIABLES
DOUBLE DECKER CHIP CONVEYOR WITH FILTRATION SYSTEM
STANDARD COOLANT SYSTEM WITH TANK AND PUMP
***IN PLANT CUTTING PARTS FOR HIGH END MEDICAL***
