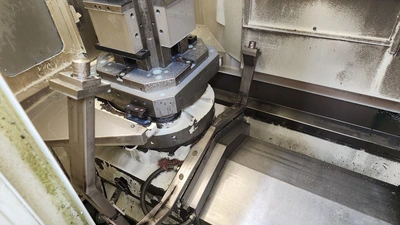

2011 Kitamura HX400iS II, 20000 RPM, CAT 40, 100 Station ATC, Coolant Through, Chip Conveyor, Laser Tool Setter, Probing
Horizontal Machining Centers
| X | 24" |
| Y | 24" |
| Z | 24" |
| Power | 30 hp |
| RPM | 20,000 RPM |
| # ATC | 100 |
| Taper | #40 |
| Pallet-W | 15.74" |
| Pallet-L | 15.74" |
| # Axis | 4 |
| Control | CNC (Fanuc 16iMB) |
Fanuc 16iMB CNC Control with 10.4" Color LCD Screen
USB, Ethernet & RS-232C Ports for DNC Operation
Rigid Tapping, Automatic Laser Tool Length Setter
Renishaw Probing (Part Centering & Location Probe)
Coolant Through the Spindle, Remote Jog Handle
Standard Coolant System with Tank & Pump
Chip Conveyor, All Available Manuals
