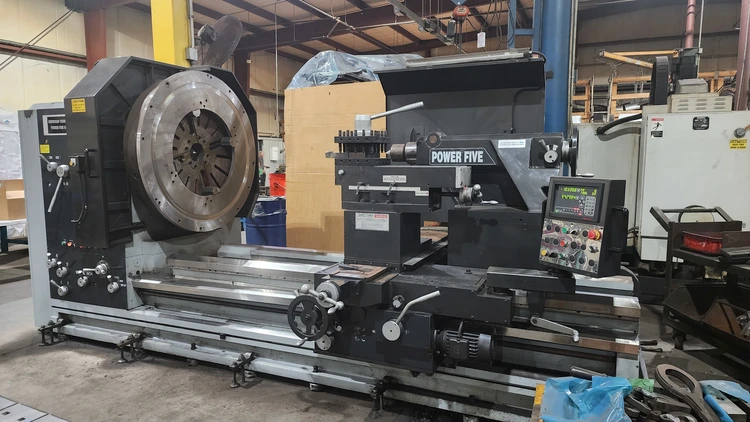

2015 Repulic Lagun American Turnmaster Model 60 Power 5 Engine Lathe, 46" Chuck, 60"/80" Swing, 80" Centers, Like New
Engine Lathes
2015 Republic Lagun American Turnmaster Model 60 Power 5 Engine Lathe, 60" Swing Over Bed, 47" Swing Over Cross Slide, 80" Swing in Gap, 80" Centers, 6" Bar Capacity Through Spindle, Used for Approximately 1000 Parts and Idle Since
| Swing | 60.126" |
| Centers | 80" |
| Spindle Bore | 6.02" |
| Power | 3,040 hp |
| RPM | 0 RPM |
| Swing Over Cross Slide | 47.25" |
| Dimensions | 14' x 7' x 7' Approx. |
| Weight | 32,000 LBS |
Swing Over Bed 60.125"
Swing in Gap 80.25"
Gap Length 23.75"
Swing Over Cross Slide 47.25"
Distance Between Centers 80"
Cross Slide Travel 31.5"
Longitudinal Travel 82"
Rapids (Long./Cross) 80/50 IPM
Spindle Bore 6.02"
Spindle Nose A2-11
Number of Spindle Speeds 18
Spindle Speed Range 7 - 700 RPM
Spindle Motor 30/40 HP
Inch Threads (60) 1/2 - 28
Metric Threads (60) 1 - 56mm
Modular Threads (60) 0.25 - 14
Diametral Threads (60) 2 - 112
Tailstock Quill Diameter 5.75"
Quill Traverse (2 Speed) 7.87"
Tailstock Taper MT #6
Weight (Approx.) 32,000 LBS
Dimensions (Approx.) 14' x 7' x 7'
Newall Smart DRO with Tool Number Display
60" 4-Jaw Manual Chuck with Through Hole
Total of 240 Various Threading Settings
Power Tailstock, Additional Tool Post & Tooling
Standard Coolant System with Tank & Pump
All Available Tooling, All Available Manuals
