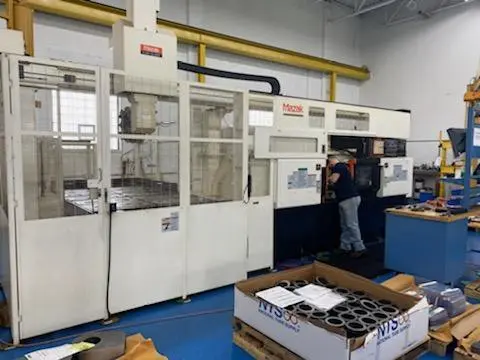

MAZAK MULTIPLEX 6300Y, FUSION 640T CNC, 12 SW, LIVE TOOLS, CHIP, '11 (3219)
5-Axis or More CNC Lathes
MAZAK MULTIPLEX 6300Y, FUSION 640T CNC, 12 SW, LIVE TOOLS, CHIP, '11
| # Axis | 5 |
| Swing | 16.93" |
| Machining Length | 25.59" |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 35 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 16.3" |
DATE OF MANUFACTURE/INSTALLED 4/2011
MAXIMUM SWING 12.5"
STD CUTTING DIAMETER 10.25"
DISTANCE BETWEEN SPINDLES 46.85"
X AXIS TRAVEL TURRET 1 & 2 9.05"
Z AXIS TRAVEL TURRET 1/2 17.25/19.37"
RAPID TRAVERSE 945 IPM
SPINDLE NOSE 1 & 2 A2-6
SPINDLE SPEEDS 1 & 2 5,000 RPM
INDEX INCREMENT .001
BAR CAPACITY 1 & 2 2.40"
SPINDLE MOTOR (2) 30 HP
TURRET CAPACITY X 2 12 POSITIONS
LIVE TOOL SPEEDS 4.500 RPM
Y AXIS TRAVEL 4"
LIVE TOOL MOTOR 5 HP
APPROX. DIMENSION (LATHE ONLY) 153" x 77" x 81"
APPROX. WEIGHT 18,750 LBS
MAZATROL FUSION 640TCNC CONTROL W/10" CRT SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION
MAZAK GL-100 LOAD UNLOAD SYSTEM
C-AXIS MILLING ON BOTH LEFT AND RIGHT SPINDLES
SPINDLE SYNCHRONIZATION, TOOL LIFE MONITORING
SIDE DISCHARGE CHIP CONVEYOR,
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
ALL AVAILABLE MANUALS AND TOOLING
