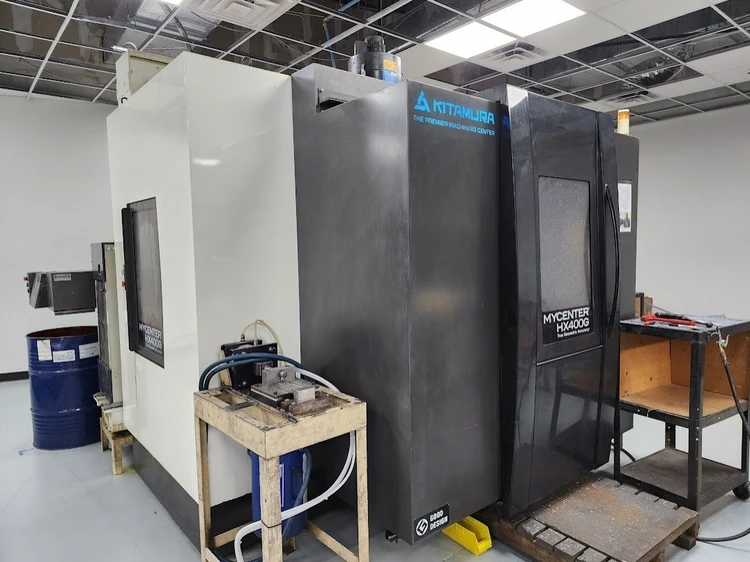

KITAMURA HX400G, ARUMATIK CNC, 26 x 24 x 22, 15000 RPM, .001 DEGREE, '17 (3523)
Horizontal Machining Centers| $179,900.00 USD |
KITAMURA HX400G, ARUMATIK CNC, 26 x 24 x 22, 15000 RPM, .001 DEGREE, '17
DATE OF MANUFACTURE 2017
PALLET SIZE / NO OF PALLETS 15.7" x 15.7"/ 16
PALLET SURFACE TO SPINDLE CENTER 1.57" - 25.59"
PALLET CENTER TO SPINDLE NOSE 3.93" - 27.95"
PALLET LOAD CAPACITY 880 LBS
MAX WORKPIECE DIAMETER 24.8"
PALLET INDEXING .001º
X AXIS TRAVEL 24"
Y AXIS TRAVEL 24"
Z AXIS TRAVEL 24"
RAPID TRAVERSE RATE X/Y/Z AXES 2362 IPM
RAPID TRAVERSE RATE B AXIS 45000º/MIN
CUTTING FEED RATE X/Y/Z AXES 2362 IPM
SPINDLE SPEEDS 50 - 15, 000 RPM
SPINDLE MOTOR 20 HP
SPINDLE TAPER CAT 40
AUTOMATIC TOOL CHANGER 50 POSITIONS
MAX TOOL WEIGHT 22 LBS
TOOL CHANGE TIME (TOOL TO TOOL) 1.3 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP) 2.5 SECONDS
APPROX. DIMENSIONS 181 " x 120" x 116"
MACHINE WEIGHT 21,560 LBS
ARUMATIK-MI CNC CONTROL 15" LCD SCREEN
ETHERNET PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM)
REMOTE JOG HANDLE / REMOTE PULSE GENERATOR
220 PSI THRU SPINDLE COOLANT THROUGH SPINDLE
LINK BELT CHIP CONVEYOR, PROBING PACKAGE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDS, ALL AVAILABLE MANUALS
