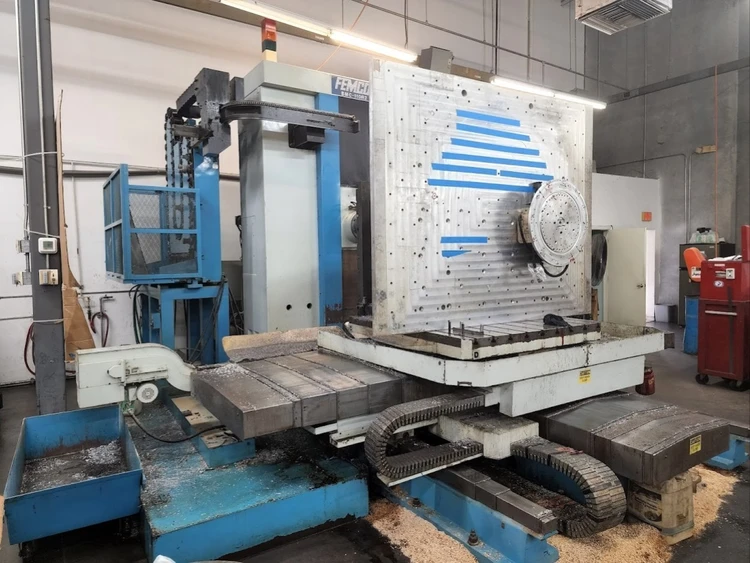

FEMCO BMC-110R2, FANUC 18iMB CNC, 4.3" BAR, 78 x 70 x 63, 60 ATC, CTS '09 (3495)
CNC Horizontal Boring Mills
FEMCO BMC-110R2, FANUC 18iMB CNC, 4.3" BAR, 78 x 70 x 63, 60 ATC, CTS '09
DATE OF MANUFACTURE 2009
TABLE SIZE 63" x 56"
WEIGHT ON TABLE 13,889 LBS
SPINDLE DIAMETER 4.3"
X AXIS TRAVEL 78.7"
Y AXIS TRAVEL 70.8"
Z AXIS TRAVEL 64.96"
MAIN SPINDLE TRAVEL (W AXIS) 19.69"
B AXIS ROTARY TABLE INDEXING .001ยบ
RAPID TRAVERSE RATE X,Y & Z / W AXIS 394 / 157 IPM
SPINDLE TAPER CAT 50
SPINDLE SPEEDS 0 - 2,500 RPM
SPINDLE MOTOR 35 HP
TOOL CHANGER CAPACITY 60 POSITIONS
MAX. TOOL WEIGHT 55 LBS
MAX. TOOL LENGTH 15.75"
MACHINE SIZE 208" x 221" x 159"
MACHINE WEIGHT 55,000 LBS
FANUC 18iMB CNC CONTROL WITH 10.4" LCD SCREEN
RS-232C PORT & ETHERNET PORT INTERFACES
RIGID TAPPING (SYNCHONOUS/SOLID TAPPING)
63" x 55" BUILT IN CONTOURING ROTARY TABLE
60 STATION AUTOMATIC SWING ARM TOOL CHANGER
THROUGH SPINDLE COOLANT (STANDARD PRESSURE)
CHIP CONVEYOR, OIL SKIMMER, ALL MANUALS
